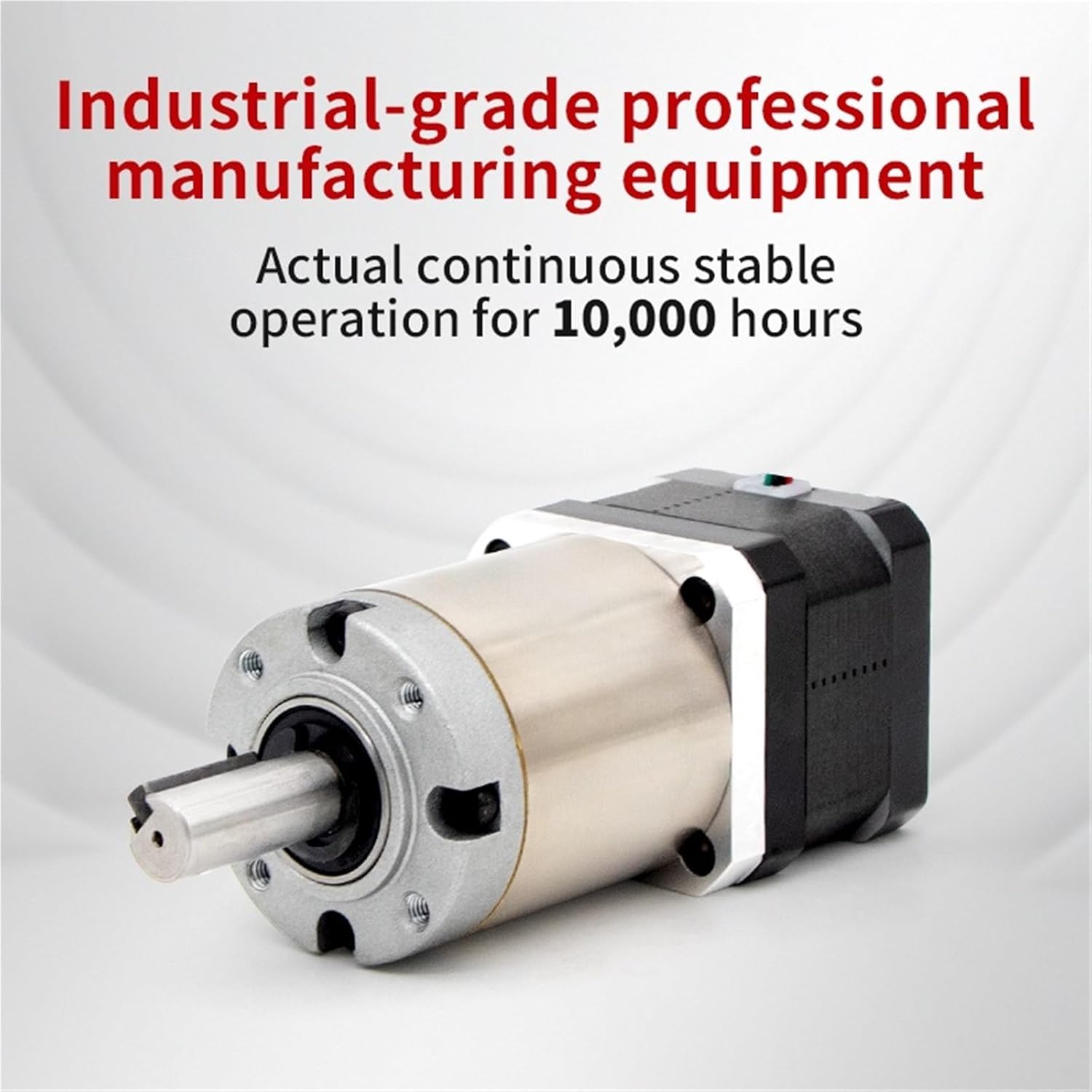

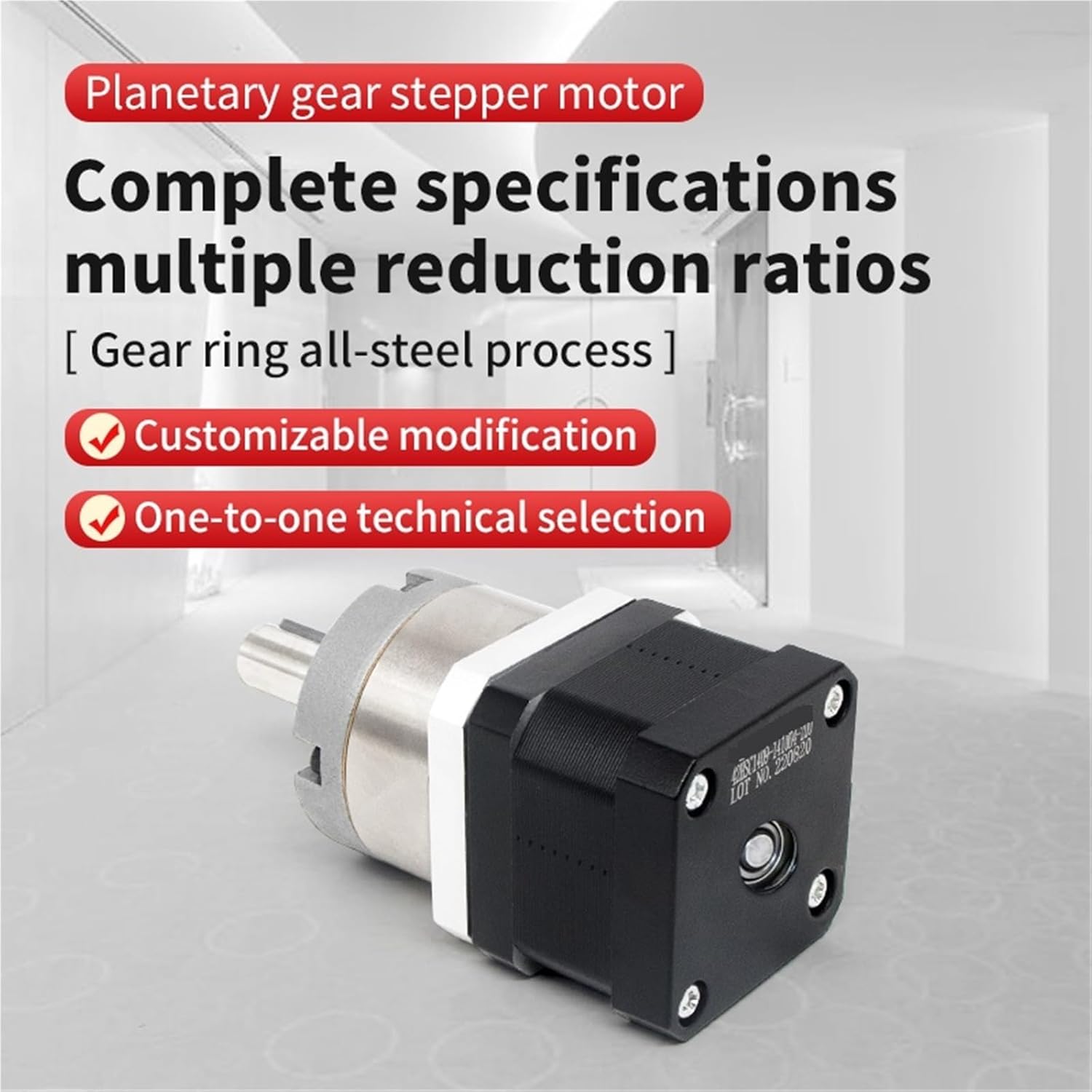

20mm Nema 8 Stepper Motors with Planetary Gearbox Holding Tq 15-30mN.m 0.5A/0.8A Ratio 1:3.7/5.2/14/19/27/51/71/100/139(Reduction Ratio 5.2,Driver-UM242(Pulse))
Product details
| Management number | 210847569 | Release Date | 2026/04/04 | List Price | $41.06 | Model Number | 210847569 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ReducersCurrent / Phase : 0.5A/0.8AHolding Tq : 15mN.m-30mN.mStep Angle(degrees) : 1.8 DegreePhase : 2Model Number : 20283542USS-2Type : HYBRIDMotor Size : 20*30mm/20*40mm1-Stage Speed Ratio : 1:3.7/1:5.22-Stage Speed Ratio : 1:14/1:19/1:273-Stage Speed Ratio : 1:51/1:71/1:100/1:1394-Stage Speed Ratio : 1:189/1:264/1:369Output Tq : 0.67Nm-6NmOutput Speed : 6rpm/min-243rpm/minRadial load : 100NAxial load : 50N
- Reducers
- 20mm Nema 8 Stepper Motors with Planetary Gearbox Holding Tq 15-30mN.m 0.5A/0.8A Ratio 1:3.7/5.2/14/19/27/51/71/100/139
| Size | Driver-UM242(Pulse) |
|---|---|
| Color | Reduction Ratio 5.2 |
| Brand Name | QfUxYYSLD |
| Manufacturer | QfUxYYSLD |
| Model Number | QfUxYYSLD |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
